Baja EC-740B

* Images are for illustration purposes only

Available Seats:

Jet Count:
40

Dimensions:
84" X 84" X 40 1/2"

Share This Spa:

* Cal Spas reserves the right to enhance, modify or discontinue products at any time without notice. Specifications may change without notice. Dimensions are approximate.

6-Person Lounge with 40 Jets

WRITE A REVIEW

Features: 5.5kW Titanium Heater, Curved Cascade LED Waterfall, Perimeter LED Lighting Package, 2 Pump System

Dimensions: 84" X 84" X 40 1/2"

Immerse yourself in a 7ft spa that is loaded with exclusive features to give you the best hydrotherapy experience possible. Interior is large enough to fit 6 adults with comfort. Feel comfort with captain seats and a cool off seat. Each seat has various jet placements to guarantee satisfaction. The entire tub is equipped with 40 exclusive VelocityTM Jets. Pursue wellness with the Baja EC-740B.

LOCATE DEALER REQUEST A BROCHURE REQUEST A QUOTE
#SPECIFICATIONSVALUE
1Seating Capacity6
2Shell ColorDeluxe Colors
3Dimensions (W x L x H)84" x 84" x 40 1/2"
4Dry Weight - Lbs. (Kilograms)800 (363 kg)
5Filled Weight - Lbs. (Kilograms)4,340 (1,969 kg)
6Water Capacity - Gal. (Liters) 425 (1,609 L)
7Eliminator High Performance™ Pump2 x 6.0 BHP (2 x 3.0HP)
8Operating Voltage240V
9Stainless Steel Jets: Exclusive Velocity™ Jets40
10Dome Jet with Valve (1 Jet)1
11Water FeaturesWaterfall LED
12Pillow(s) Y-Pillow
13Gate Valve(s)Yes
14Air Venturi ValveYes
15Filter System (Bio-Clean)50 Sq. Ft. Teleweir
16Perimiter Underwater LED Lighting PackagePremium LED Lighting Package
17Whisper Power Unit™ NEO Equipment with Full Color ControlBP 501G1 Cal-Spa Touch1
18Thermo-Shield™ Insulation Side Panels and Thermo-Layer Floor with ABS LinerYes
19WhisperHot™ Heating System5.5 kW Titanium
20Pure Silk™ Ozonator with Mazzei Injector and Mixing ChamberYes
21Pressure Treated Cabinet FrameYes
22Spa Cover: Cal Armor™ (Weather Shield)
Colors: Gray, Dark Brown
4“ to 2.5“ Cal Armor™
23Cabinet Accessible Drain ValveYes
24Cabinet Panel with Cal Spas Premium Badge: Mahogany, Smoke & MistCal Preferred™ Vertical
25Spa Cover: Cal Armor™
(Weather Shield)
4" to 2.5"
26Warranty (Structural)10 Years
27Warranty (Finish)7 Years
28Warranty (Labor)5 Years
29Warranty (Cabinet)5 Years
30Warranty (Parts) 5 Years

SHELL

Advanced Shell Colors

ACRYLIC COLORS Label

Sterling Silver Wispy Blue [Marble] Alba Tuscan Sun [Marbel] Midnight Canyon [MARBLE] Storm Clouds [MARBLE] Sahara/ Sierra [QUARITE] Glazier Mountain Smokey Mountain

CABINET

Cal Spas Cabinet

STYLE COLOR CHOICES

Mahogany smoke Mist

COVER

Cal Spas Cover

COVER COLORS

Black/Charcoal
OPT22-109

OPT22-109

Exclusive Adjustable Therapy System™ Plus (ATS Plus)

OPT22-102DX-1

OPT22-102DX-1

Twin Pure Silk™ System; Dual Ozonators with Mazzei Injectors and Mixing Chambers

Opt22-113S

Opt22-113S

Cal Salt™ Filtration System

OPT22-112C

OPT22-112C

24x7 Filtration System

OPT22-FS43

OPT22-FS43

Freedom™ Sound System:
Bluetooth Connectivity, Powered Subwoofer and (4) Speakers

OPT22-900

OPT22-900

Thermo-Guard™ Full Foam Insulation
( This Option will Replace Thermo-Shield )

say room!

There is so much room in this spa I have a big family a constraint space in the back of my house so when we tested this out with our dealer all fit we fell in love.The extra cool off seat is a nice bonus especially if it gets too hot! Dont have to totally leave the spa the ppl in it enjoying it too.

verified customer

- Ahmed Al Nasari (Denver Colorado)
03/12/2020

love love love love

Love this Spa! No better way to wind down after a long day. Being able to control the Spa my phone make sure its always ready for me once I get off of work!

verified customer

- Cris T (Hillsboro OR)
03/12/2020

CAL SALT

Cal Salt™ Filtration Sanitation System produces a pure form of chlorine by electrolysis of salt (NaCl) providing pure sanitized spa water. Once salt in the water is converted to chlorine, bacteria is killed and the chlorine converts back to salt, the process repeats. Importantly, the salt concentration used is very low (less than that in a human tear).

CONTROL PANEL

CONTROL PANEL

CONTROL PANEL

Easily located at the front of the spa, giving you more control over the sanitation of your spa.

CELL & HOLDER

CELL & HOLDER

CELL & HOLDER

Installed in the filter area to maximize water flow of the solution throughout the plumbing and out the jets of your spa.

CAL SALT VIDEO

CAL SALT VIDEO

CAL SALT VIDEO

See Cal Salt™ Filtration System at work.


HYDRO-MASSAGE THERAPY BENEFITS

You can find many benefits to improving your mind and body with each spa we carry. Customize your Hydro-Massage Therapy to meet your objective.

SEATS

SEATS

Bench and Lounge Contour Seats

Enjoy form fitting seating as you immerse yourself in a hot tub full of jets.


*Seats vary by model

JETS

JETS

Exclusive Velocity™ Jets

Strategically placed to hit exact pressure points, which will allow your muscles to decompress. Jets are adjustable at your convenience.


ULTIMATE PERFORMANCE

Cal Spas prides itself on 100% custom built American-made Spas. We dedicate ourselves to build the most durable and functional spa that is on the market today.

PUMPS

PUMPS

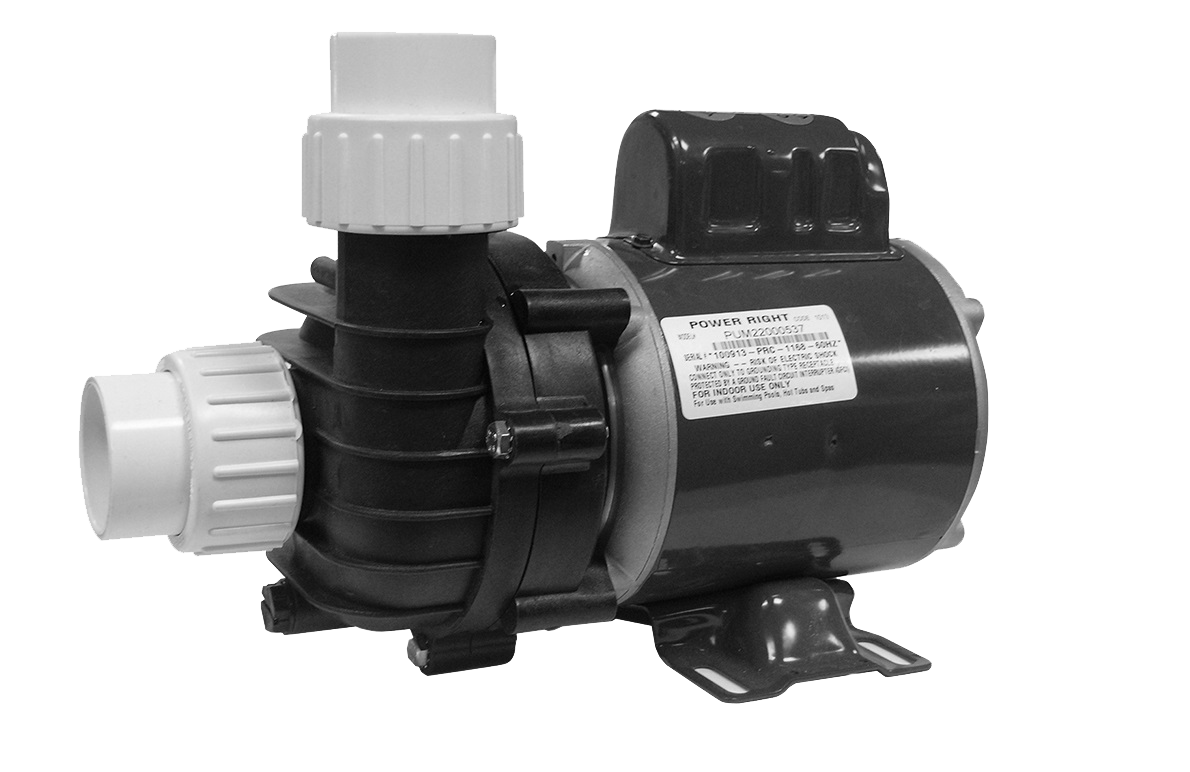

Eliminator High Performance™ Pump

We have the most reliable motors in the industry. With less moving parts, these motors feature two independent winding speeds and a reverse-flow cooling system. Built to last a lifetime!

HEATER

HEATER

Whisper Hot™ 5.5 kW Titanium Heater

Titanium Element in calcified Tube Titanium has become the solution to hot tub heater longevity, and has long been the best defense against chemical & mineral abuse.

CONTROLS

CONTROLS

Cal Spas Touch1

A modern intuitive electronic spa control system designed to easily switch between settings. Including in-depth features, vibrant colors, user feedback and response. Set your spa to your liking with an easy-to-read menu that will leave your spa functioning seamlessly.


PURITY

It is necessary that the water in your spa stays purified, and with our filtration system, we make it easy for you.

OZONE

OZONE

PURE SILK™ SYSTEM

Using Ozonators with Mazzei Injectors Mixing Chambers, will kill microorganisms and prevents them from reproducing. No chemicals are added to the water, and won't interfere with the oxidation process.

BIO-FILTER

BIO-FILTER

50 SQ. FT. BIO-CLEAN™ Teleweir FILTER SYSTEM

A special Filter System bacteria-fighting agent is molded into the fabric of the filter and prevents harmful microbes and bacteria from reproducing.


EFFICIENCY INSULATION

Our insulation is the best on the market. We have it down to a science for you to keep your spa protected and the heat locked in!

THERMO-SHIELD

THERMO-SHIELD

Thermo-Shield™ Side Panel

Our cabinet walls contain premium insulation that is completely recyclable and produces less waste than traditional urethane foam. Additionally, it does not block passage to the spa.

FULL FOAM

FULL FOAM

Full Foam Insulation

By adding full foam into the spa structure, water is preserved so the heat does not release. This will reduce the time that it takes to heat and maintain water temperature.

*Optional Feature

CABINET

CABINET

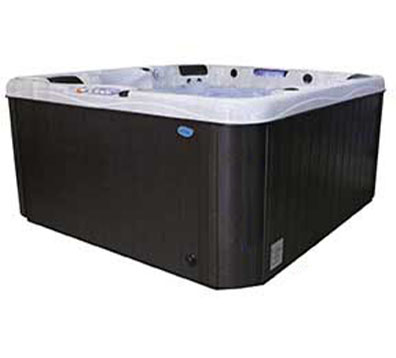

Cal Preferred™ Cabinet Panels

Each cabinet is designed to provide maximum support for every spa. Match your favorite shell color with eye-catching panels available in select colors.

COVER

COVER

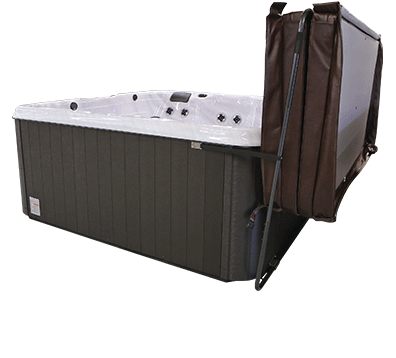

Hydro-Armor™ Spa Cover

Our spa cover is built with a tapered edge and has a downward angle from the center, which prevents precipitation from pooling. Made from 100% marine-grade with a vinyl top, filled and supported by 18-gauge steel C-Channel beams.

COVER UPGRADE

COVER UPGRADE

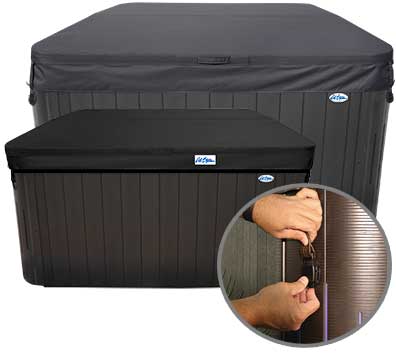

Cal Armor™

Same durability and grade as our existing covers but 1/3 LIGHTER and 3X STRONGER!

*This feature is limited only to certain models.


STRENGTH STARTS UNDERNEATH

With a strong foundation our spas are built to last.

FIBER STEEL

FIBER STEEL

Fibersteel™ Construction

Patented 7-layer laminate system reinforced with steel and wood. This combination creates one of the strongest shells in the world.

FRAME

FRAME

Pressure Treated Wood Cabinet Frame

Our cabinet frames are treated to resist rot, corrosion and insects. Constructed using 1" galvanized steel fasteners, corner gussets, and vertical angle bracings for added beam support.

PLUMBING

PLUMBING

Tru Blue™ Vacuum Break Intake System

This VGB Approved safety break feature automatically reduces pump suction in the event of an obstruction or intake blockage.

FOAM

FOAM

Hydro Steel Foam

This high-density foam is added to support the plumbing underneath so nothing gets out of place


LIFE PLEASURES

To be in a spa feels great, add the extra, then it becomes perfect!

ERGONOMICS

ERGONOMICS

Cal Spas Cascade Pillows

Relax your head and neck with this soft, smooth and super-comfy spa pillow !

* for Newporter Only

WATER FEATURE

WATER FEATURE

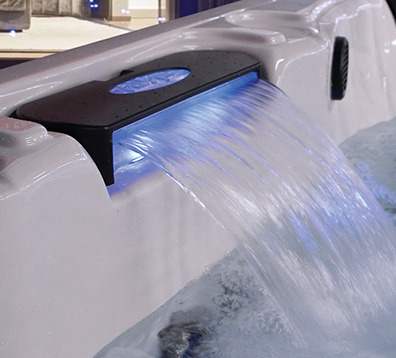

Cascade Waterfalls

Enjoy the sound of a Cascading LED Waterfall while multi-colored LED lights stream a sequence of vibrant colors

*Optional Feature

ESCAPE

ESCAPE

Patented Molds

You will know the meaning of "escape" when you sit on one our Escape Series Spas. With meticulously designed and trademarked / patended molds that will hug your body like a hand-in-a-glove.

SOUND SYSTEM

SOUND SYSTEM

Freedom™ Sound System

Includes Bluetooth, Powered Subwoofer and Cube Speakers. Bluetooth technology lets you control your music through your smart device from anywhere inside, or outside your Cal Spas Hot Tub.

WI-FI

WI-FI

Wi-Fi Module

Using Wi-Fi allows you to control your spa from anywhere in your home. Turn your spa on and off with ease. Control your filter cycles, the temperature and the pumps. You choose!

*Optional Feature

WI-FI UPGRADE

WI-FI UPGRADE

Cal Connect™ System

Upgrade your Wifi connection to direct RF (Radio Frequency). Your spa will have its own local IP address and can talk to other smart appliances and devices like Alexa and can be controlled and monitored anywhere around the world via the built-in Cal Spas app
*This feature varies by model. Alexa is a registered trademark of Amazon.

INTERIOR LIGHTING

INTERIOR LIGHTING

LED Spa Lighting Package

Enhance your spa session in your backyard by turning on the lights to your spa. Choose between seven colors, two color modes or shine on a particular hue with on/off functionality.
